Bluetooth Barcode Scanner Symcode 2D Scanners

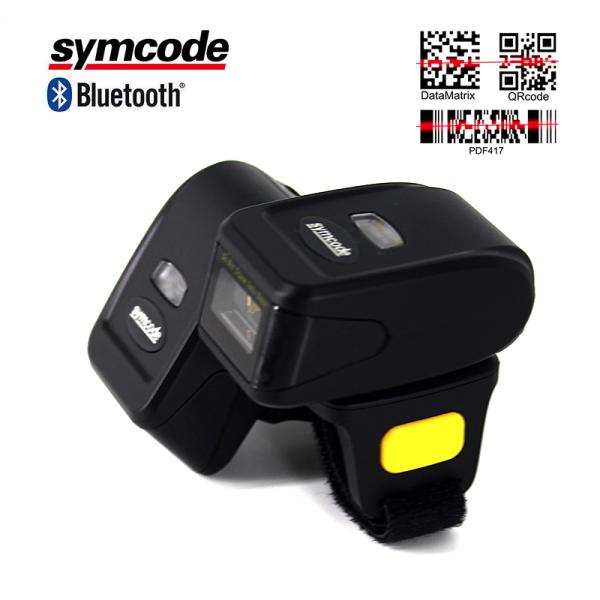

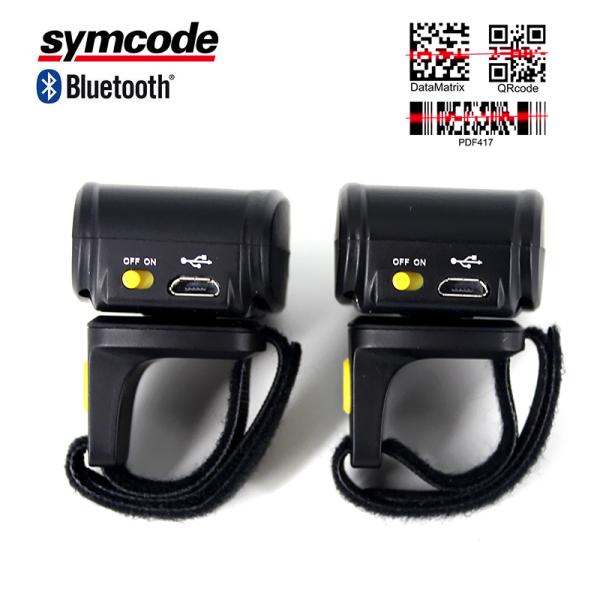

Wireless Mini Finger Ring Barcode Reader
This is model used to named model number MJ-5209A,the new model number now is MJ-R30,which can connect with iOS and android smart phone easily. Special design Bluetooth protocol, you can scan barcode into tablet PC and smart phone directly without install any software.
Brief Introduction:
1. Low Profile: Reduces interference and improves worker transaction time while reducing accidental drops, lowering the total cost of ownership.Small size with large storage, portable and endurable.
2. Ring Design: Ring design allows worker to wear the scanner of the Finger, left or right, increasing worker satisfaction and comfort.
3. Bluetooth Wireless Connectivity:Keep the scanner connected up to 30 feet (10m) from the computer, increasing productivity by allowing workers to move to the task.
4. Ring: Magnesium alloy top enclosures, and a smooth, low-Profile magnesium trigger offer greater durability and ease of use, leading to increased productivity, a lower cost of ownership and reduced downtime.
5. Items will be shipped within 1-2 business day when we received payment.
6. Omni-directional scanning 1D, 2D bar codes.
7. Capability of reading bar codes on the screen of a mobile phone.
8. Presentation scanning while working with a Holder or Stand.
9. Rugged design with 2-meter drop resistance.
10. Outstanding reading ability on low contrast, smudged,poorly-printed or damaged barcodes.
| Type | Bluetooth 2D barcode scanner |
| Image Sensor | CMOS |
| Resolution | 752 × 480 |
| Reading preciseness | ≥ 5mil |
| Interface | Bluetooth |
| Battery | DC 3.7V,360mA Li-ion battery |
| Memory | 512KB |
| Support OS | Microsoft Windows XP/7.0/8.0,Android, iOS. |
| Depth of Scan Field | 30 mm ~ 240 mm |
| Barcode types | 2D:
PDF417, QR Code(Model 1/2), DataMatrix(ECC200, ECC000, 050, 080, 100,140), Aztec, Maxicode, LP Code, Chinese-Sensible Code
1D:
Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25, Interleaved 2 of 5, ISBN/ISSN, Code 93, etc. |
| PCS | ≥ 30% |
| Scanning angle | Roll 360°@ 0°Pitch and 0° Skew
Skew ±60° @ 0°Roll and 0° Pitch
Pitch ±55°@ 0°Roll and 0° Skew |
| Bluetooth module | BLE4.0 |
| Comunication distance | 10-30 meters |
| Safety performance | CE & RoHS
Accord with national level 2laser safety standards |
| Dimension | 51mm*40mm*45mm |
| Weight | 79g |
